Covered Distance

Covered Distance#

Exertion metrics like covered distance, and covered distance in different speed and acceleration zones are one of the most used metrics from soccer tracking data. The information is uses for load monitoring and it is even tried to link it to the outcome of the game. Optical tracking data has advantages over gps based tracking data since the concrete walls of big stadiums tend to influence the accuracy of GPS systems. Furthermore, it is often not financially feasable to have LPM systems installed in all the stadiums where your team plays. Optical tracking data gives the solution to load monitoring in matches. Lets start by loading in a Match object and get coding on the covered distance feature!

from databallpy import get_match, get_open_match

match = get_match(
  tracking_data_loc="../data/tracking_data.dat",
  tracking_metadata_loc="../data/tracking_metadata.xml",
  tracking_data_provider="tracab"
  event_data_loc="../data/event_data_f24.xml",
  event_metadata_loc="../data/event_metadata_f7.xml",
  event_data_provider="opta",
)

# or get the open match provided by Metrica
match = get_open_match()

Note

The current supported tracking data providers are:

Tracab
Metrica
Inmotio

The current supported event data provider are:

Opta
Metrica
Instat

If you wish to use a different provider that is not listed here, please open an issue here

Since player velocity is often calculated in tracking data, we will use the velocity to compute the covered distance. After all, if you are running at 10 \(m/s\) for 1 second, your distance covered is 10 \(m\).

Tip

Use the add_velocity function from the databallpy.features module to compute the velocity of your players.

import pandas as pd

def get_covered_distance(
    tracking_data: pd.DataFrame,
    column_ids: list[str],
    frame_rate: int,
) -> pd.DataFrame:

    column_ids = sorted(column_ids)
    result_dict = ({"total_distance": []})

    tracking_data_velocity = pd.concat(
        [tracking_data[player_id + "_velocity"] for player_id in column_ids], axis=1
    ).fillna(0)
    tracking_data_velocity.columns = tracking_data_velocity.columns.str.replace(
        "_velocity", ""
    )
    distance_per_frame = tracking_data_velocity / frame_rate
    result_dict["total_distance"] = distance_per_frame.sum().values
    return pd.DataFrame(result_dict, index=column_ids)

covered_distances_home_players = get_covered_distance(
    match.tracking_data.iloc[:60*match.frame_rate],
    column_ids = match.home_players_column_ids(),
    frame_rate=match.frame_rate
)

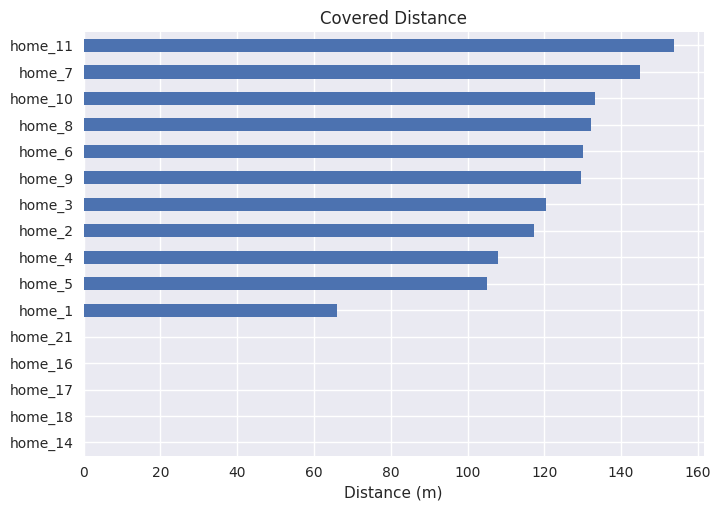

../_images/103bf017ba4053832f901f0fe3aef5aa8c4ab438cc6a6bd2f44288d85bfc88dd.png

11 of the 16 players covered some distance. The keeper had the lowest covered distance (home_1) and home_11 covered the most distance. all other players covered at least 105 meters in the first 60 seconds of the match. Although helpfull, to quantify exertion and biomechanical load, it could be more intersting to look at the distance covered in different velocity and acceleration zones.

Distance Covered in Velocity and Acceleration Zones#

To parse the zones we can provide the velocity zones in \(m/s\) like this velocity_zones = ((0, 3), (3, 6), (6, np.inf)). Lets update the function so it can handle these values.

import numpy as np

def _add_covered_distance_interval(
    result_dict: dict,
    interval_type: str,
    tracking_data: pd.DataFrame,
    distance_per_frame: pd.DataFrame,
    intervals: list[tuple[float, float]],
    column_ids: list[str],
) -> dict:
    for player_id in column_ids:
        for min_val, max_val in intervals:
            mask = tracking_data[player_id + "_" + interval_type].between(
                min_val, max_val
            )
            total_distance = distance_per_frame[player_id][mask].sum()
            result_dict[f"total_distance_{interval_type}_{min_val}_{max_val}"].append(
                total_distance
            )
    return result_dict

def get_covered_distance(
    tracking_data: pd.DataFrame,
    column_ids: list[str],
    frame_rate: int,
    velocity_intervals: tuple[tuple[float, float]] = (),
    acceleration_intervals: tuple[tuple[float, float]] = ()
) -> pd.DataFrame:

    column_ids = sorted(column_ids)

    # Different initialization of result dict
    result_dict = (
            {"total_distance": []}
            | {
                f"total_distance_velocity_{interval[0]}_{interval[1]}": []
                for interval in velocity_intervals
            }
            | {
                f"total_distance_acceleration_{interval[0]}_{interval[1]}": []
                for interval in acceleration_intervals
            }
        )

    tracking_data_velocity = pd.concat(
        [tracking_data[player_id + "_velocity"] for player_id in column_ids], axis=1
    ).fillna(0)
    tracking_data_velocity.columns = tracking_data_velocity.columns.str.replace(
        "_velocity", ""
    )
    distance_per_frame = tracking_data_velocity / frame_rate
    result_dict["total_distance"] = distance_per_frame.sum().values

    # Add covered distance in velocity or acceleration intervals
    for interval, interval_name in zip ([velocity_intervals, acceleration_intervals], ["velocity", "acceleration"]):
        if len(interval) > 0:
            result_dict = _add_covered_distance_interval(
                result_dict,
                interval_name,
                tracking_data,
                distance_per_frame,
                velocity_intervals,
                column_ids,
            )

    return pd.DataFrame(result_dict, index=column_ids)

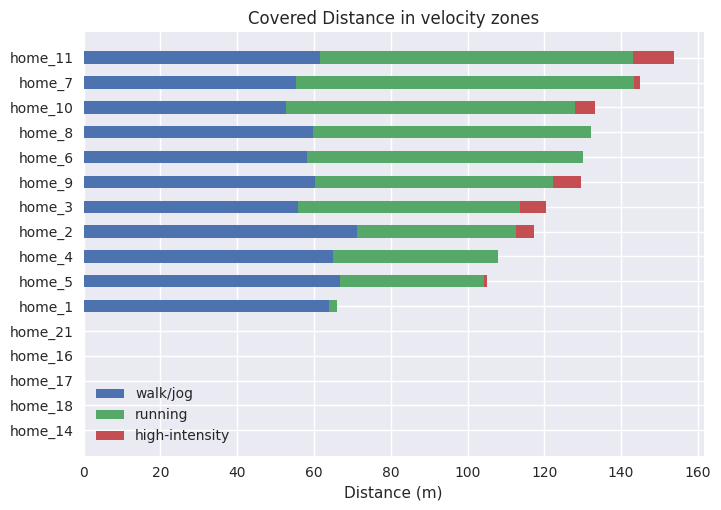

covered_distances_home_players = get_covered_distance(
    match.tracking_data.iloc[:60*match.frame_rate],
    column_ids = match.home_players_column_ids(),
    frame_rate=match.frame_rate,
    velocity_intervals=((0, 3), (3, 6), (6, np.inf))
)
